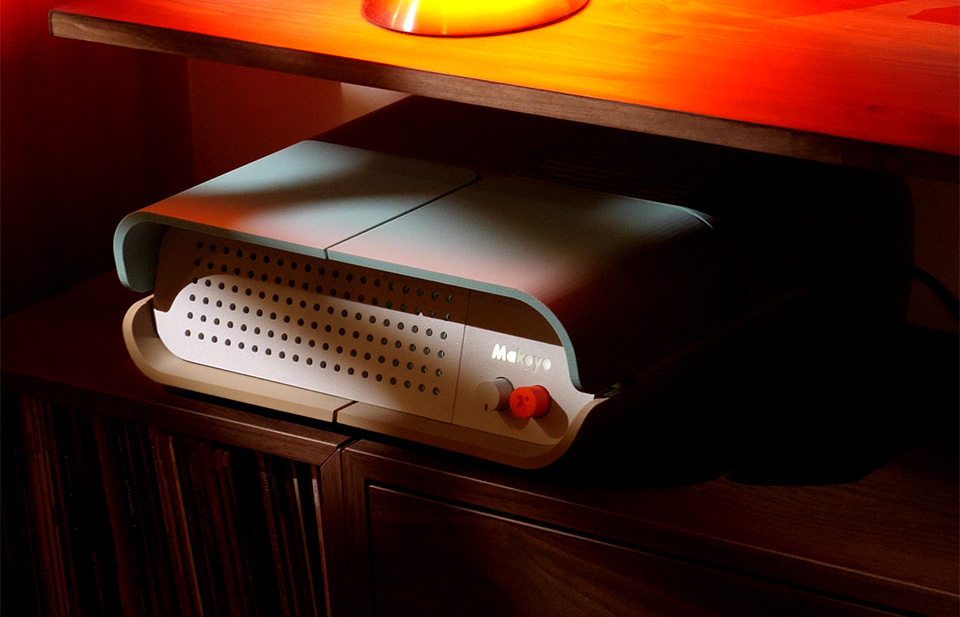

Desktop
& living room

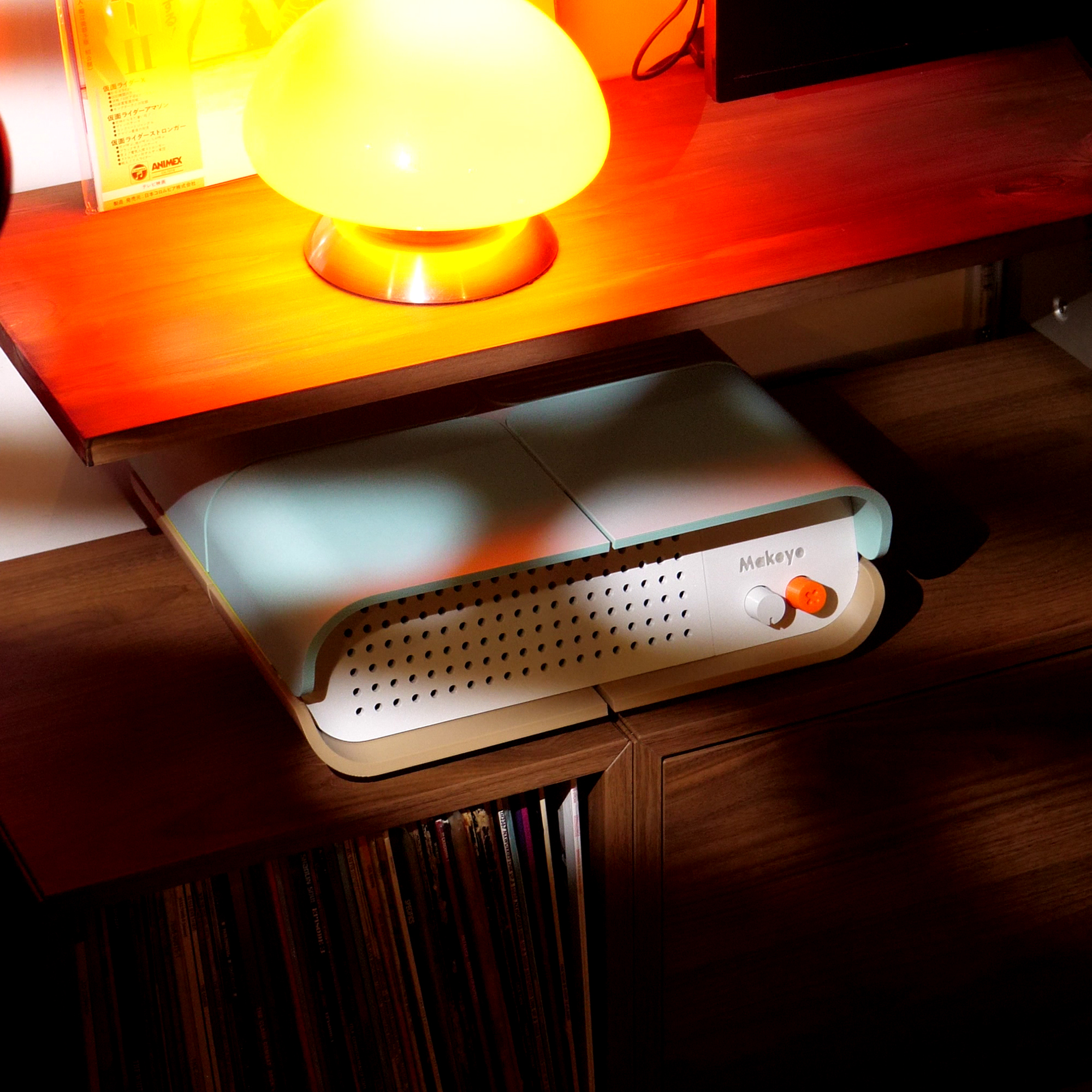

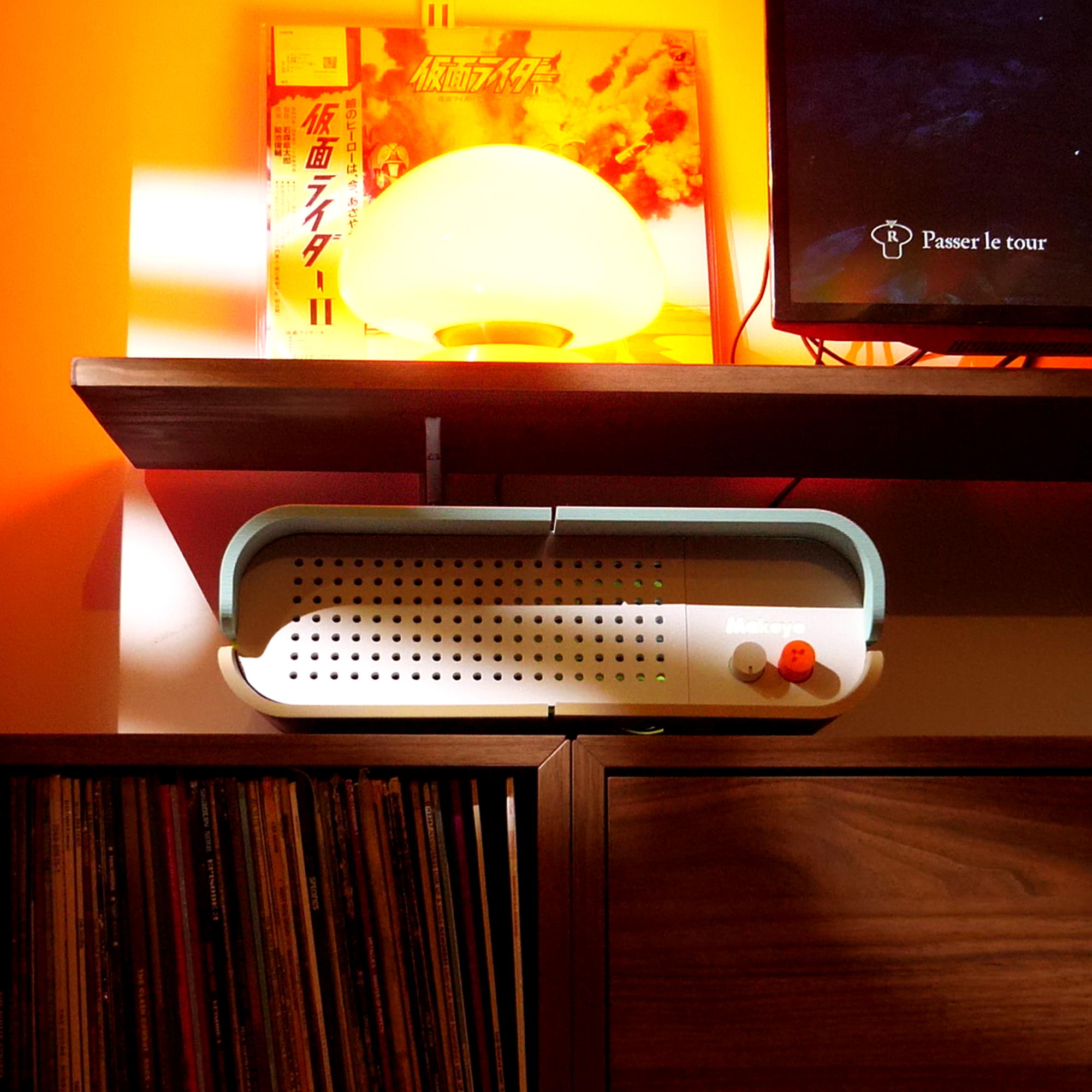

A case meant to be displayed, not hidden away

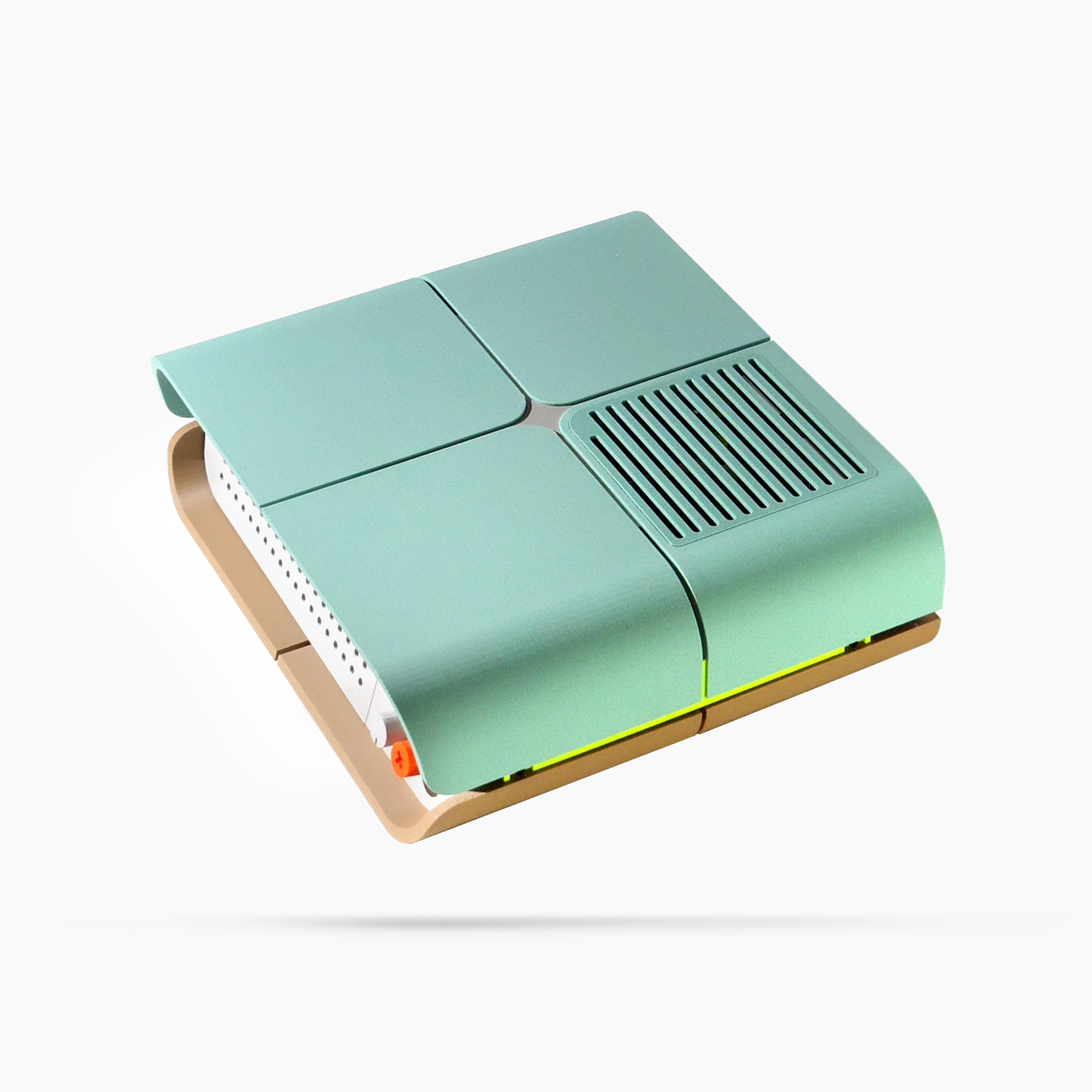

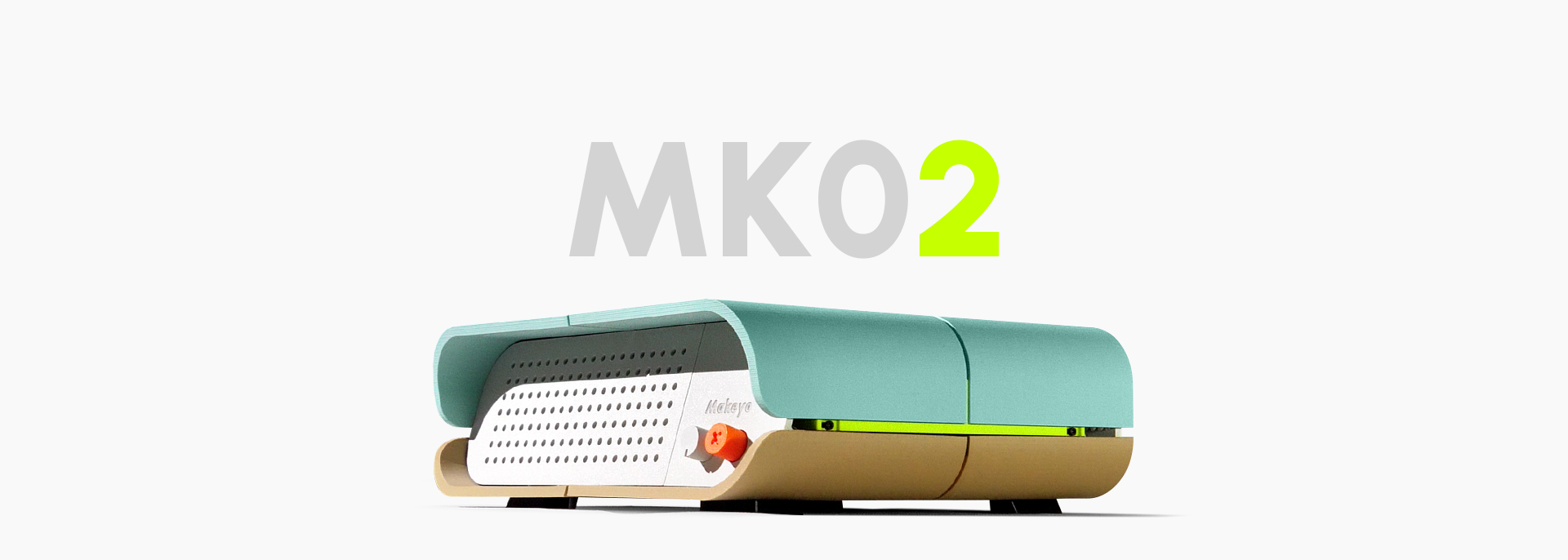

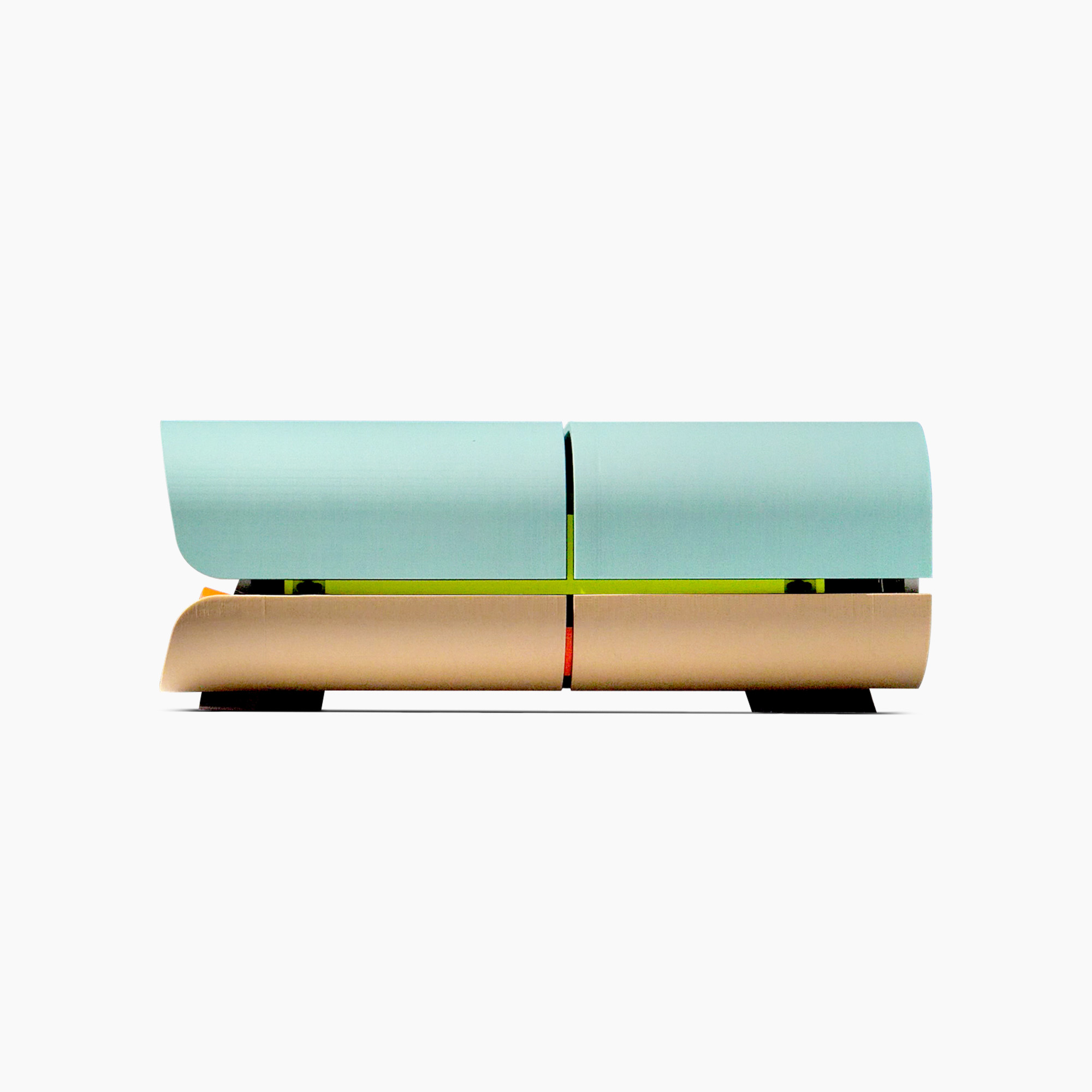

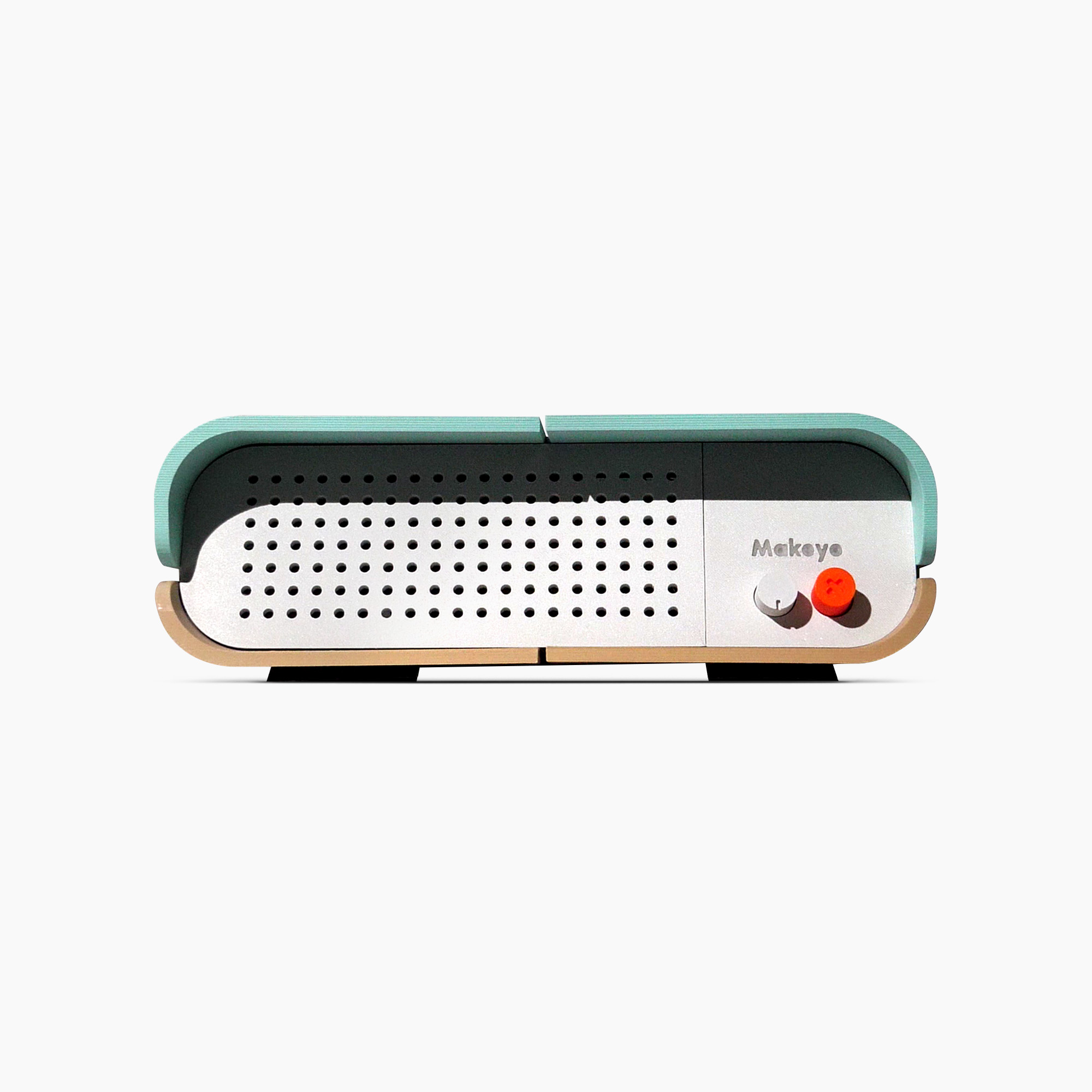

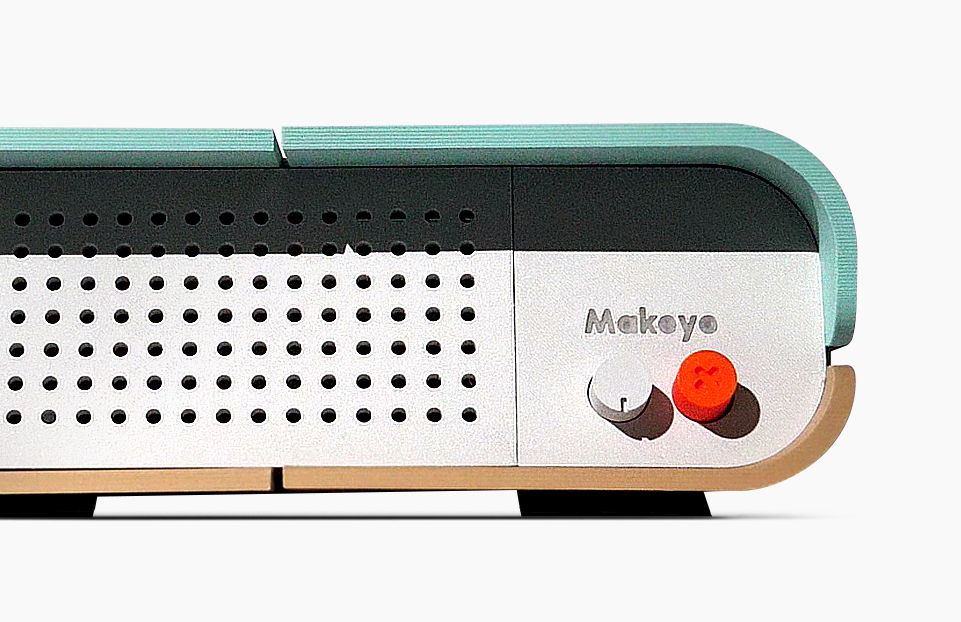

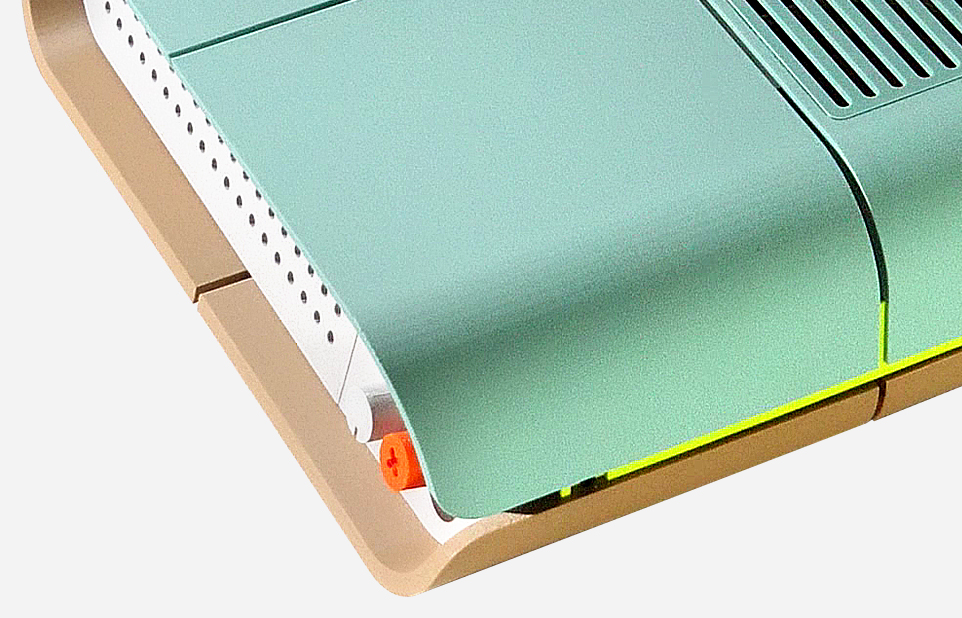

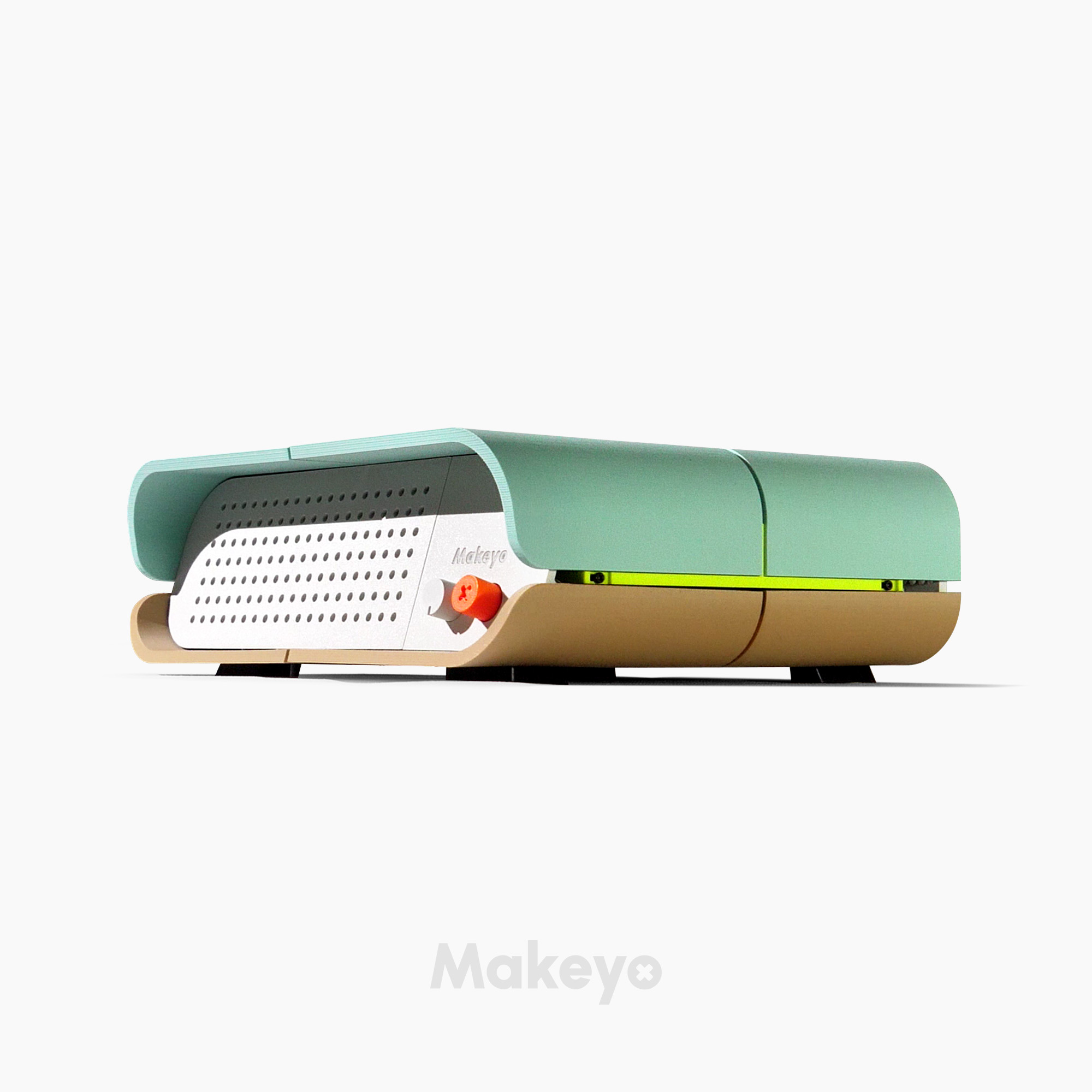

MK02 | 3d printed horizontal pc case
20,00 €
Mini ITX 3D printed pc case
A compact horizontal format, designed like a media center and a game console.
A design case meant to be displayed, not hidden away.
A case inspired by the design language of both vintage and modern hi-fi audio equipment.
The MK02 is a mini-ITX case with the graphics card mounted horizontally using a riser cable.
Unlike the MK01, whose goal is to be a standard and flexible mid-tower case, the MK02 requires specific component choices.
The power supply used is the HDPLEX 500W from HDPLEX. The fans are Noctua NF-A9x14 PWM, and the CPU cooler is a Noctua NH-L9a (or NH-L9i for Intel).
At the moment, the case is designed only for this specific power supply. The fans and CPU cooler may possibly be sourced from other manufacturers, but they must have the same characteristics as the Noctua models.
⚙️ supported components: ⚙️
-All parts are printable on 3d printers with min 256x256mm printing area
-For the graphics card, the maximum dimensions are: 115 mm width, 65 mm height, and 240 mm length.
- HDPLEX500w PSU only supported
- Noctua NH-L9a or 9i
-4x Noctua NF-A9w14 PWM*
⚠️ Required material list ⚠️
-Glue
-PLA : 2kg ( not considering color choice)
-M3 screw: all in one kit
-
6mm : x16
-
16mm: x10
-
18mm: x16
-
10mm: x35
-
20mm: x4
-
8mm: x9
-x78 M3x4mm SHORT heated insert
-HDPLEX PSU 500W
-Noctua NF-A9x14 PWN (92x14mm)
-Low profile CPU cooler ( Noctua NH-L9i or NH-L9a)

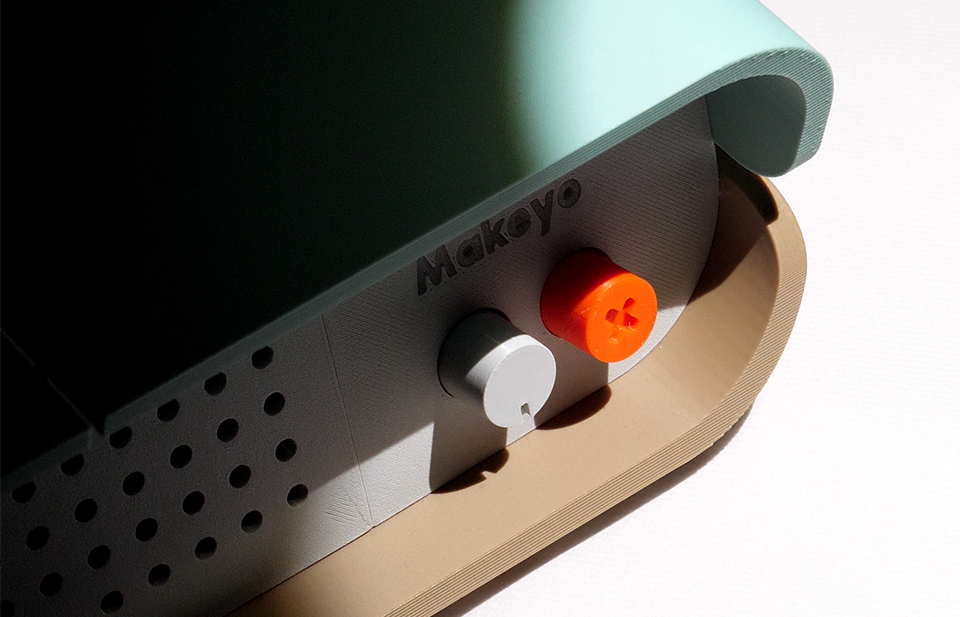

-13mm button micro switch
-Adafruit Led backlight 12x40mm
My amz list for reference, with supported pc components : List
Assembly guide: download
